INDUSTRIAL MACHINE DESIGNED FOR MULTIPLE PRODUCTION PROCESSES, SUITABLE FOR DIFFERENT SECTORS
Perfect for the window, rail, automotive, aerospace and construction industries
The MC200 is a CNC work center designed to ensure maximum versatility and precision in the processing of steel, aluminum, light alloys and composite materials. Thanks to its compact and robust structure, it offers high performance and adaptability to different production needs.
Innovation and Efficiency
- High-power synchronous electrospindle with 5 kW and 24,000 rpm, ideal for fast and precise machining.

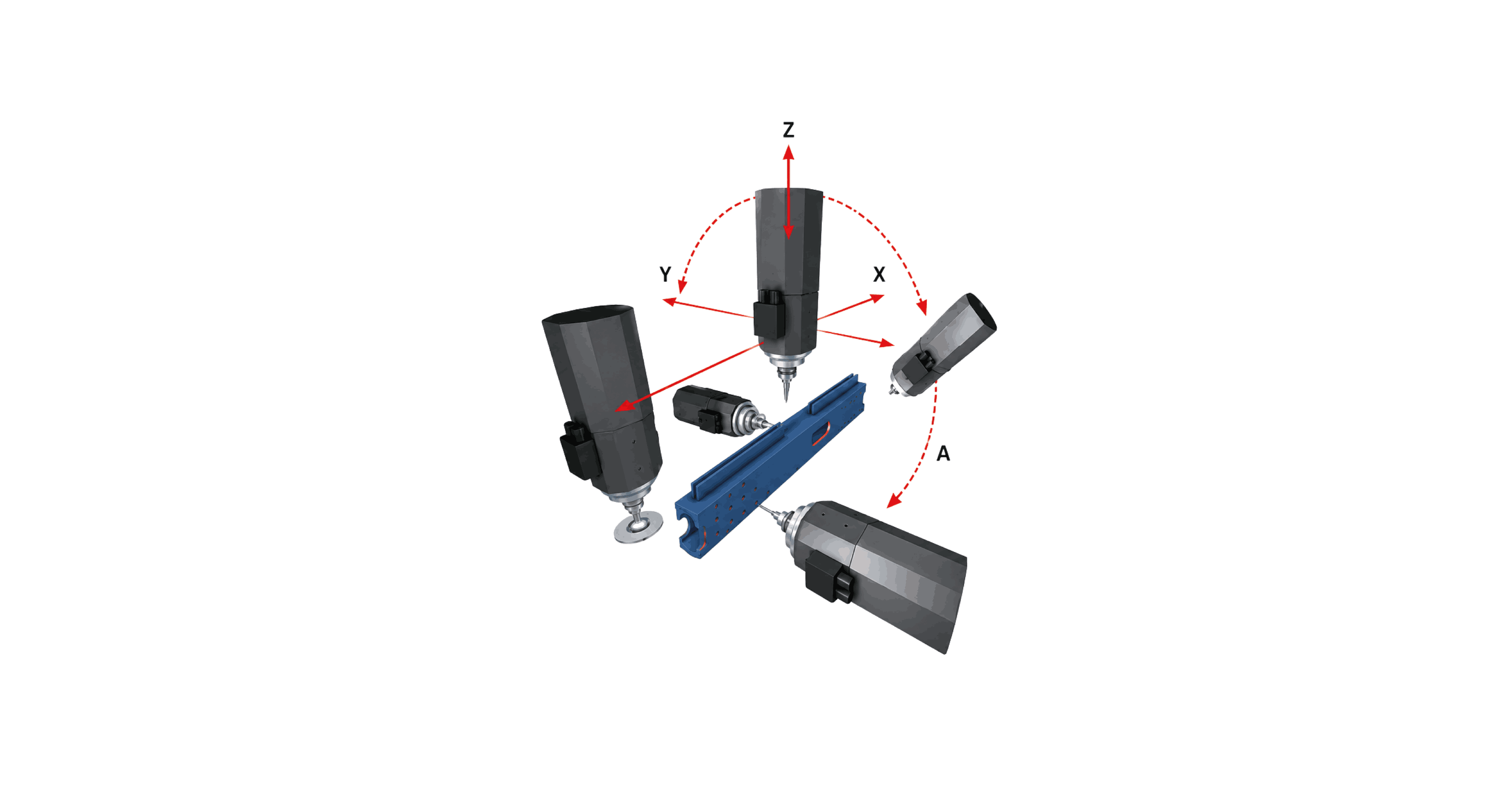

- 4 interpolated axes, with rotation from -90° to +90°, for machining on complex profiles.

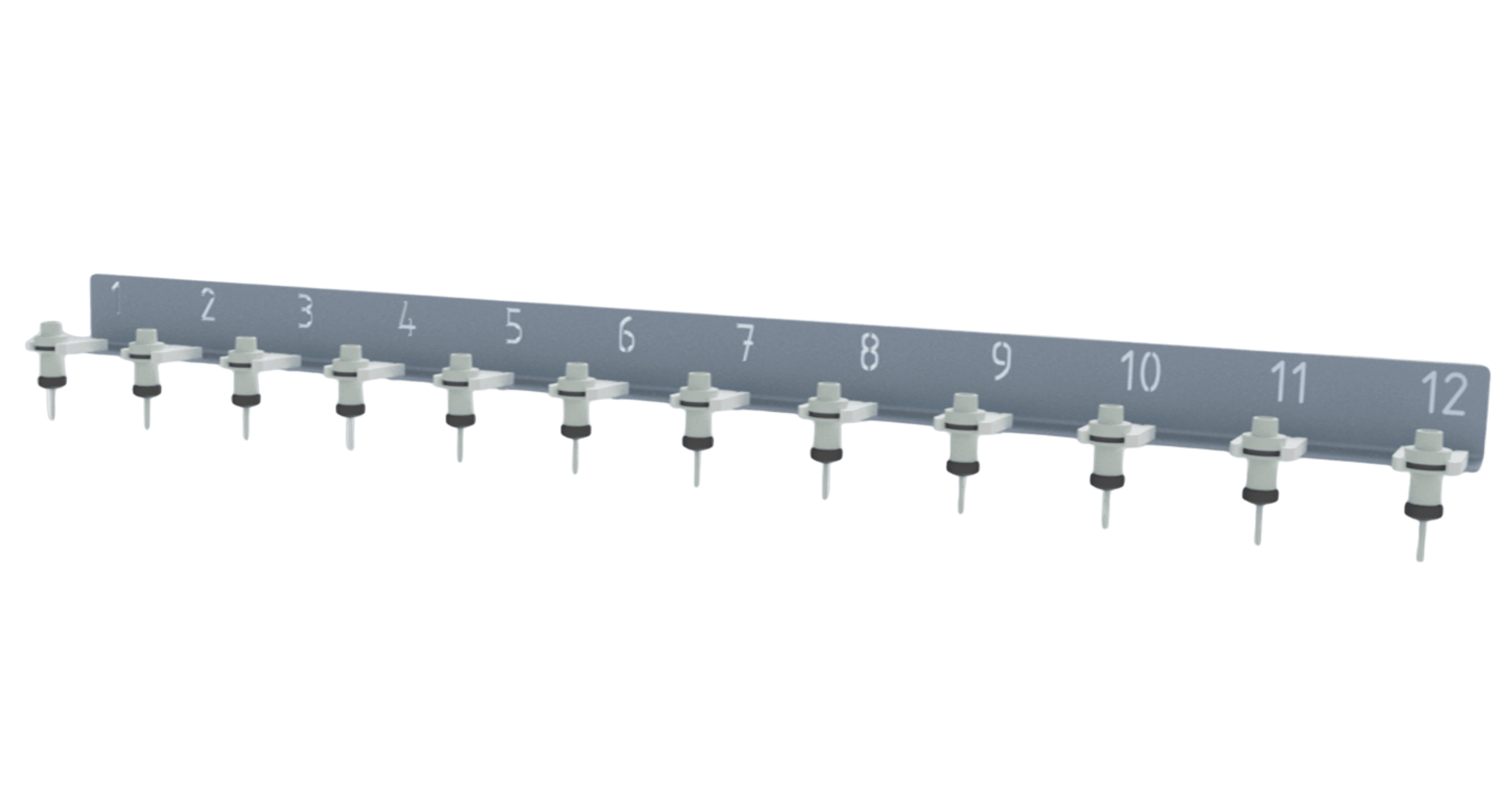

- Automatic tool changer with 12 positions, for optimized management of the machining tools, expandable up to 16 tools.
- Advanced CNC system, managed by the CadCam MTMACC, with parametric programming, STEP import and 3D visualizations.
- Ergonomic, compact and intuitive control panel, for easy access to the machine functions.
Strengths
- Compact and robust center, designed for advanced industrial processes.
- Equipped with 6 automatic clamps, for a safe and stable grip of the profiles.
- Innovative HSK 50F spindle at 24,000 rpm, super compact and high performance.
- 4 interpolated axes, which allow working at any angle with maximum precision.
|
MODEL |
MC200 |
|
Dimensions |
3.150 x 240 x 230 mm |
|
Transport dimensions |
L 5.400 W 1.900 H 2.300 mm |
|

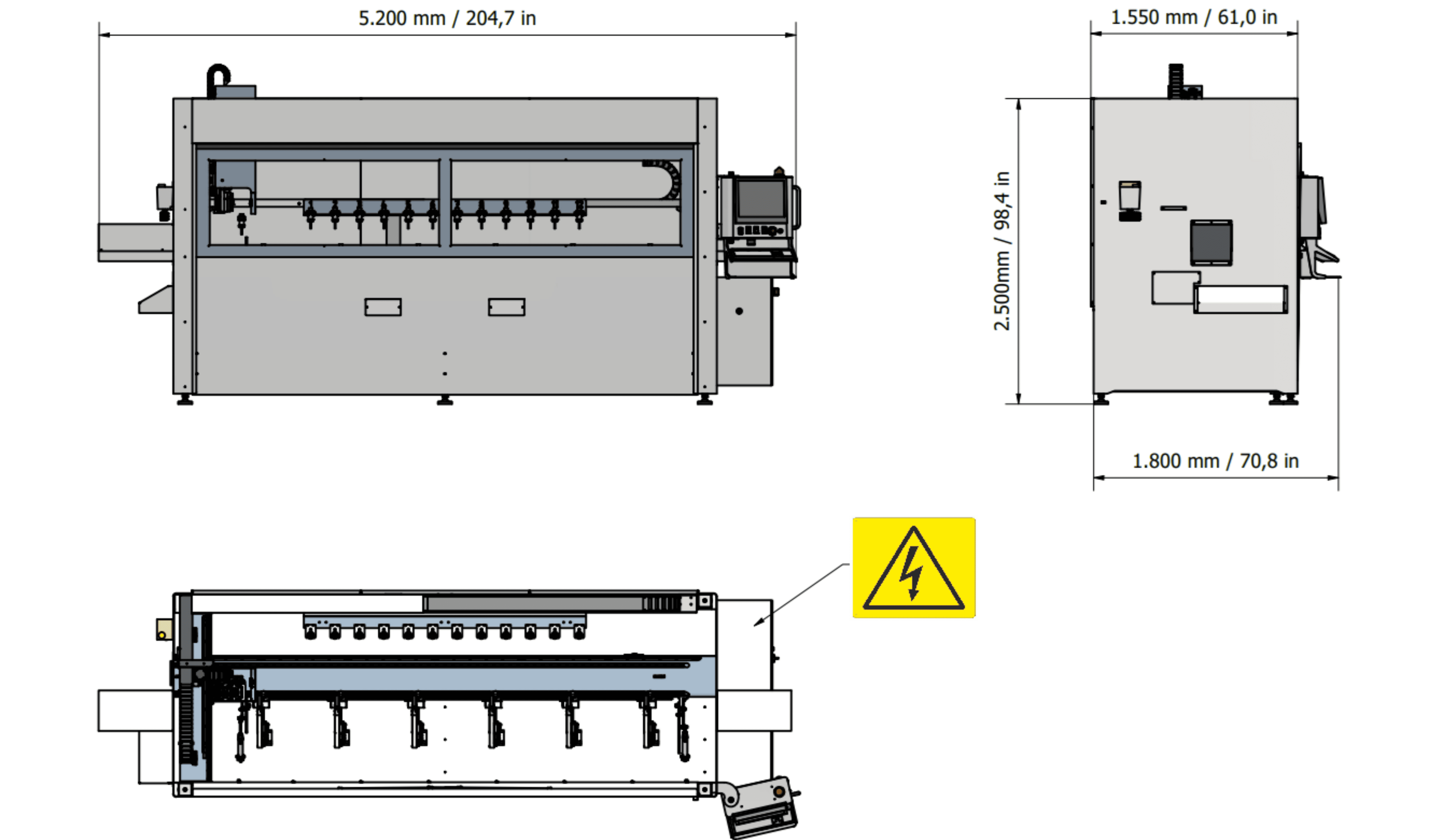

Layout dimension standard |
L 5.200 W 1.800 H 2.500 mm |
|
Weight |
2.300 Kg |
|
Nominal power |
10 kW |
|
Consume power |
7 kW |
|
Required protection |
16 A (thermal + differential 0.1 A) |
|
Voltage |
400 V, 3-phase + Neutral (+/-5%) |
|
Frequency |
50/60 Hz |
|
Minimum air pressure |
0.65 Psi |
|
Air consume |
80 NL/M |
|

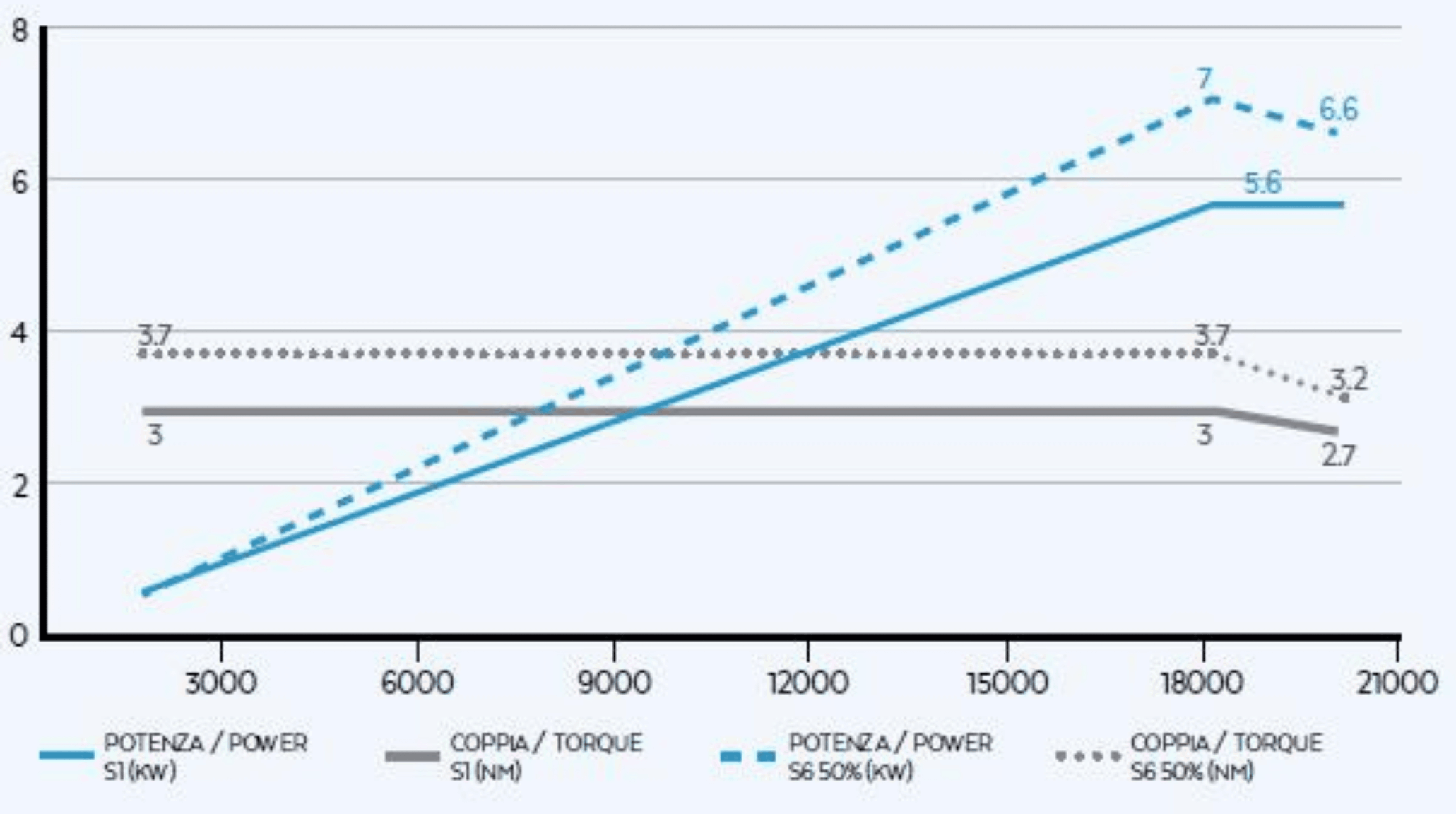

Nominal power of Electrospindle |
5.5 kW |
|
Nominal torque |
3.7 Nm at 13.000 rpm |
|
Tool holder type |
HSK F50 |
|
Spindle cooling system |
Cooling unit/ceramic bearings |
|
Tool cooling |
Venturi system |
|
Oil tank capacity |
1 Lt |
|

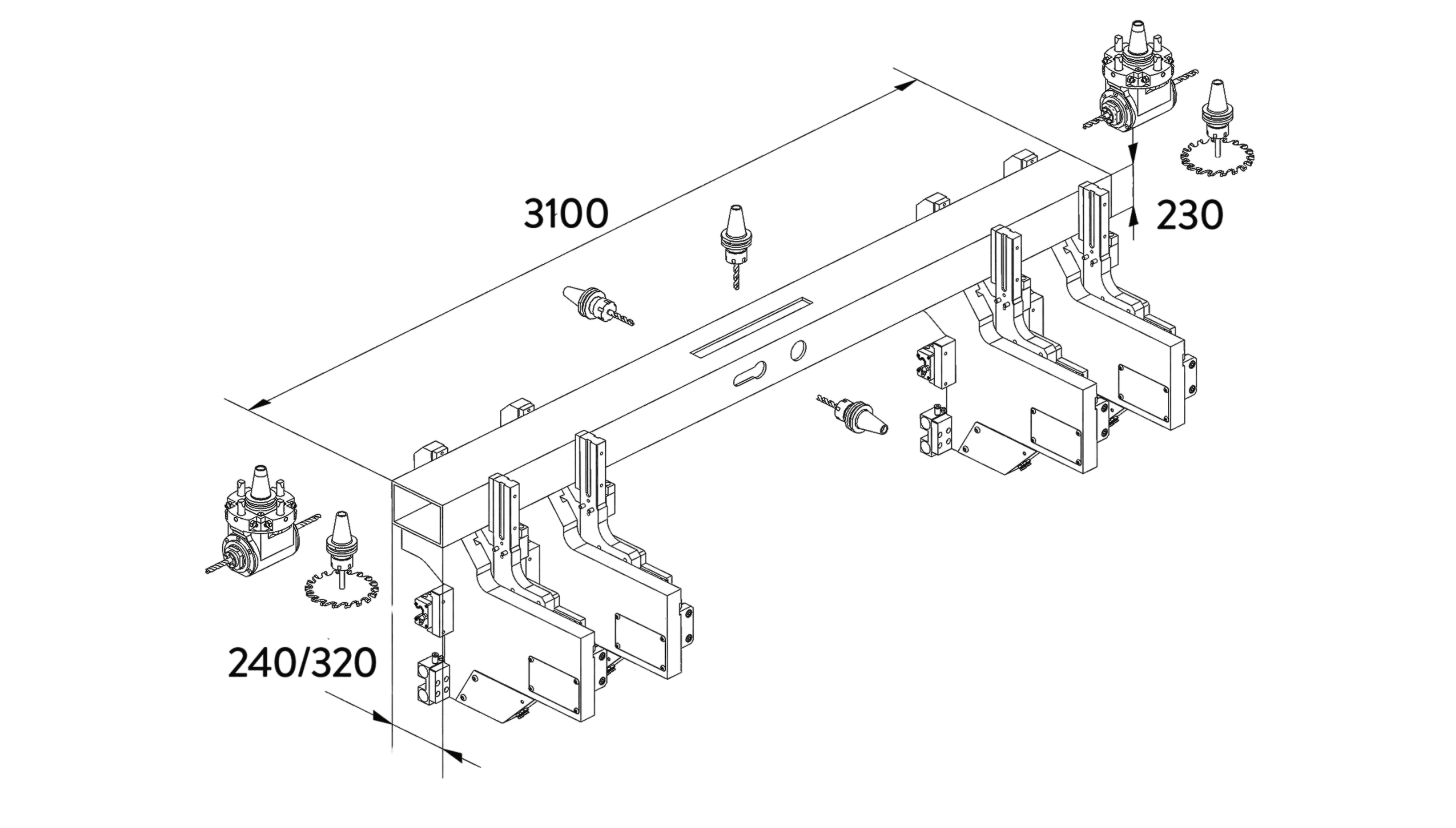

X-axis travel Y-axis travel Z-axis travel A-axis rotation C-axis |
3.100 mm 245-320 mm 3 axis 250 mm 180° Not applicable to this model |
|
Max speed X Max speed Y Max speed Z Max speed A Max speed C |
55 m/min 40 m/min 30 m/min 3.000°/min Not applicable to this model |
|
Pneumatic references CNC managed |
1 |
|

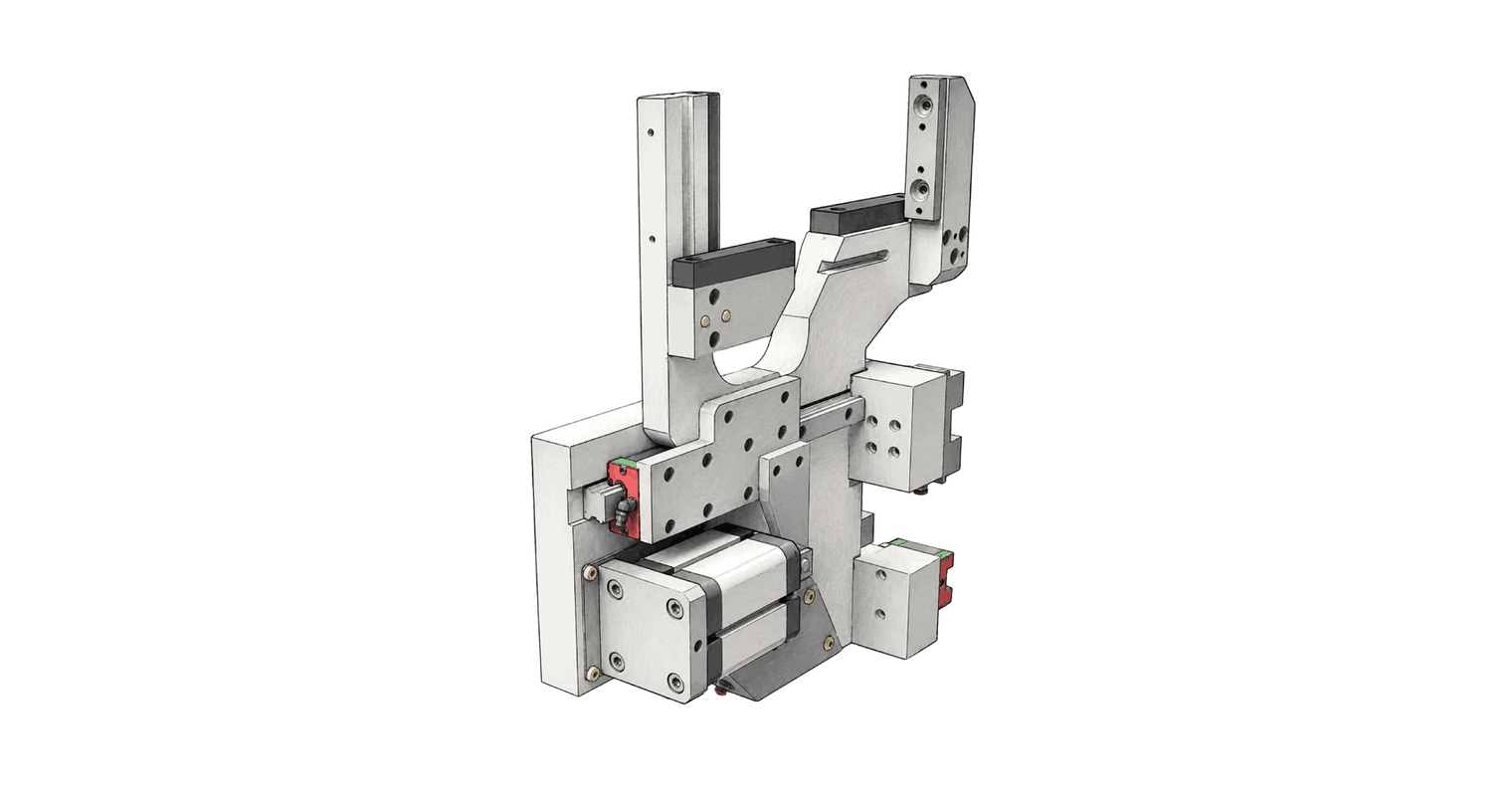

Clamps Clamp closing power |
4 with automatic displacement by carriage 80 kg |
|
Lubrication |
Manual (central greasing points for guides and screws) |
|
Humidity limit |
75% |
|
Accuracy |
0.1 mm/m |
|
Monitor |
24" |
|
Operating system |
Win11 |
|
Connections |
USB (1 port), LAN, Wi-Fi |
