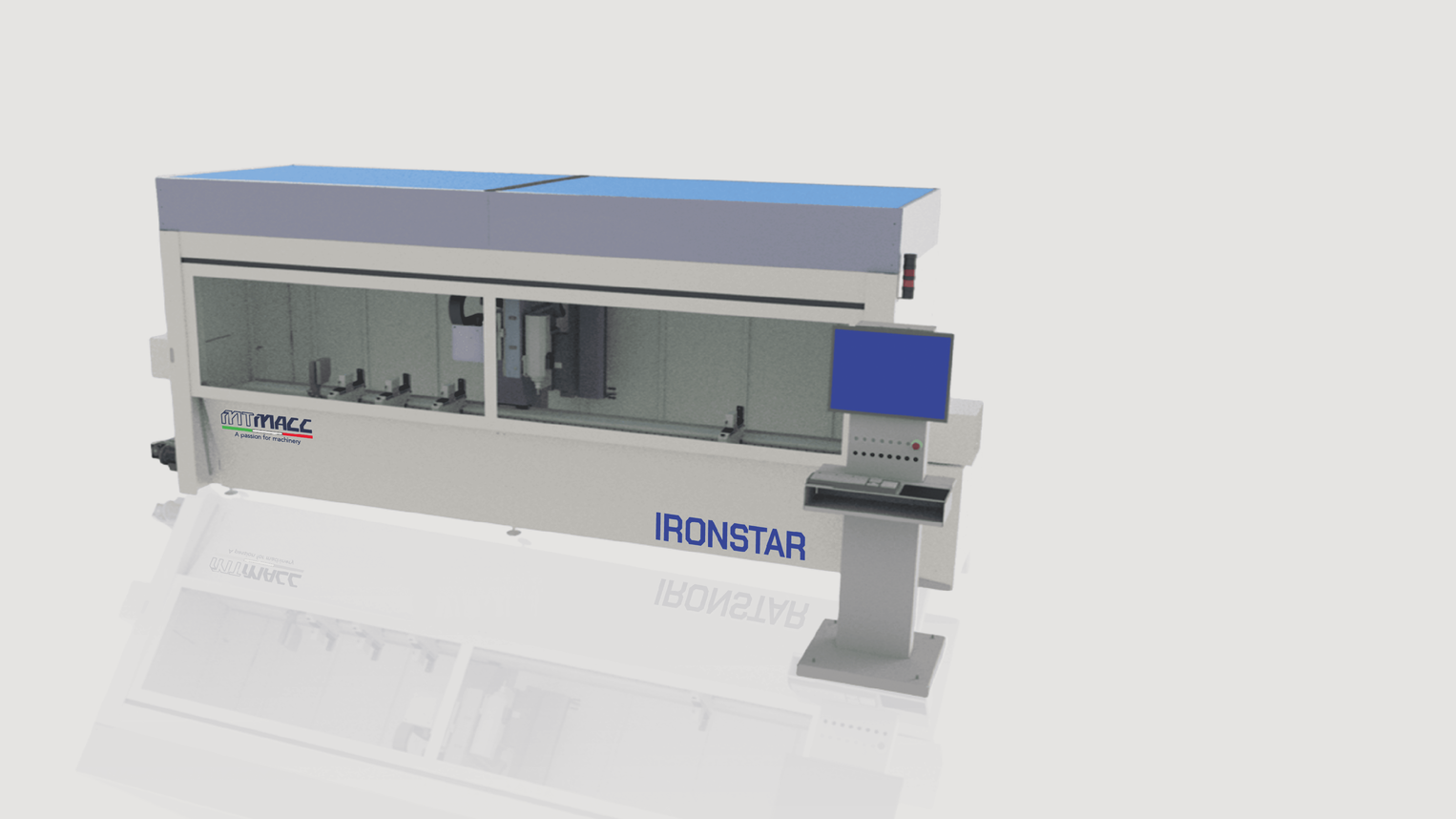

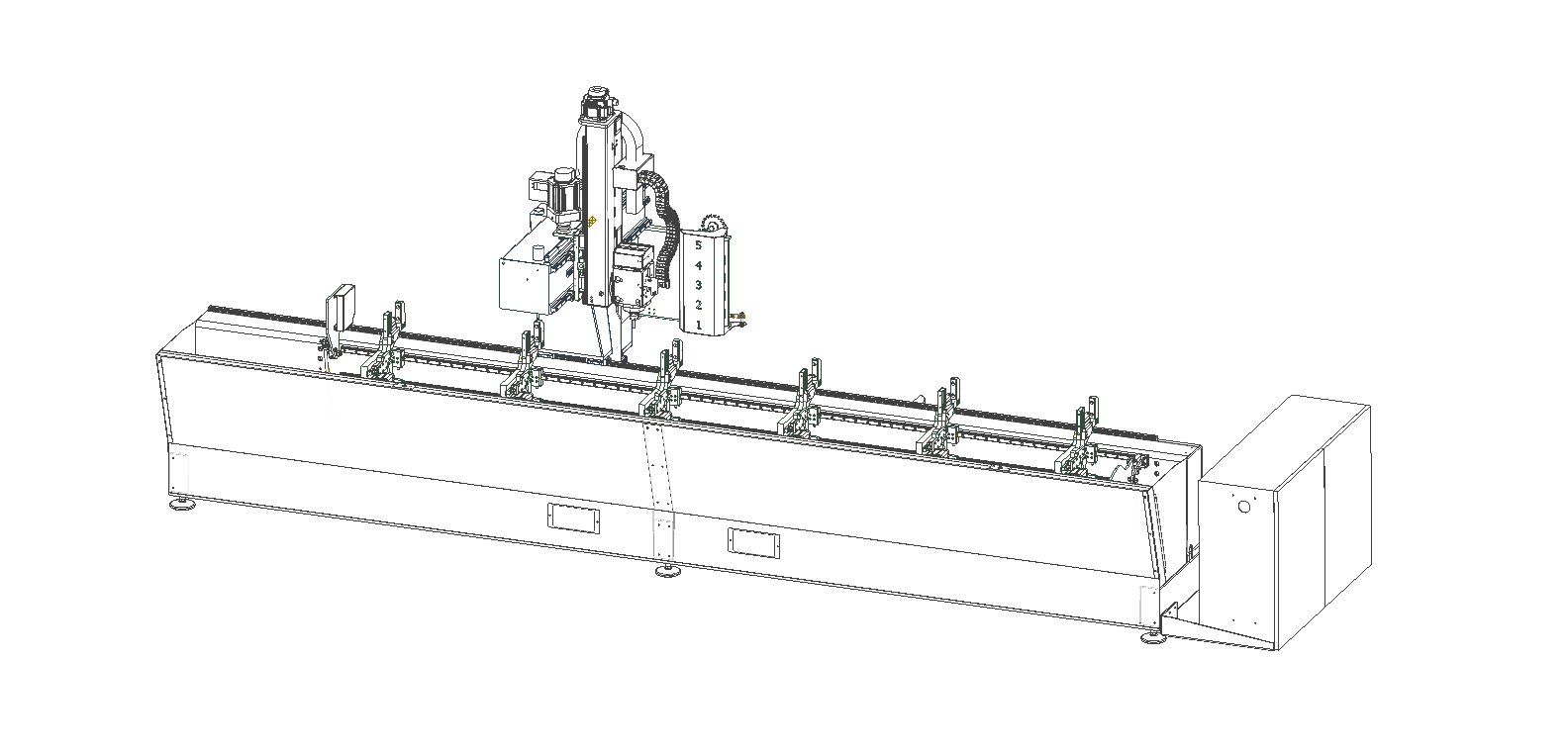

IRONSTAR was born from the need of the iron processing sector for a powerful and automatic machine, able to perform complex machining with x, y and z interpolation managed by numerical control. From the experience of MTMACC has been built this 4 axis cnc capable of working iron profiles up to 6 mm thick.
The machine is designed for the industrial processing of steel profiles of significant size and weight. The base consists of an electro-welded structure, milled with high-precision machine tools after shot peening and painting treatments. The thickness of the materials used for the base exceeds 14 millimeters to ensure surface flatness and prevent distortion problems during transport and/or handling of the machinery. The base is raised from the ground by 8 adjustable steel feet to adapt to any flooring, equipped with anti-vibration rubber to prevent the transmission of vibrations to the ground. On the base is positioned a mobile carriage made of electro-welded steel tubulars and connected to each other by multiple supports, in order to ensure maximum rigidity and prevent bending of the column even in case of heavy-duty processing on steel or high-strength materials.
Strengths
- Compact and powerful, ideal for ironworking
- Possibility of machining profiles longer than the length of the basement
- Water lubricated spindle with collection tank
- Capable of performing Flowdrill with 4-axis interpolation
|

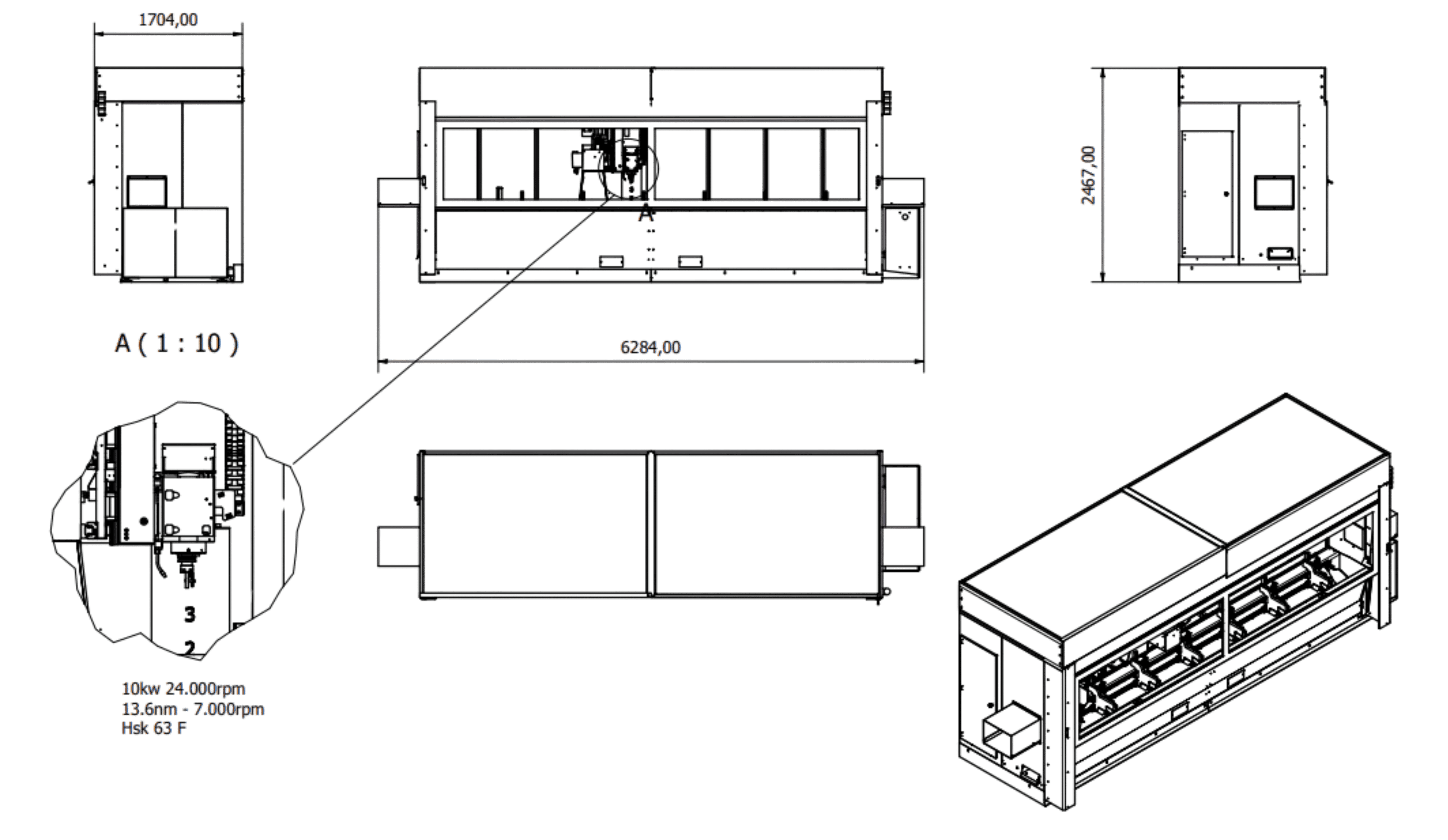

MODEL |
IRONSTAR 4 METERS |
|
Dimensions |
4.600 x 1.675 x 2.260 mm |
|
Dimension for transport |
L 8.900 W 2.400 H 2.500 mm |
|
Layout dimension standard |
8.300 x 3.100 x 3.200 mm |
|
Weight |
4.200 Kg |
|
Nominal power |
24 kW |
|
Consume power |
18 kW |
|
Required protection |
40 A differential thermal, 0.03 A, adjustable, 6.000 A magnetic) |
|
Voltage |
400 V, 3-phase + Neutral + Ground ±5% |
|
Frequency |
50/60 Hz |
|
Minimum air pressure |
6.5 bar |
|
Air consume |
180 NL/M |
|
Electrospindle nominal power |
10 kW |
|
Tool holder type |
HSK F63 |
|
Spindle cooling system |
Water cooled system |
|
Tool cooling system |
Micro-drop lubrification system with pure oil |
|
Oil tank capacity |
2 Lt |
|
Number of nozzles |
2 |
|
X-axis travel Y-axis travel Z-axis travel A-axis rotation |
4.100 mm 240mm – 320mm 3axis 240 mm 180° |
|
Max speed X Max speed Y Max speed Z Max speed A |
80 m/min 60 m/min 30 m/min 3.000°/min |
|
Tool storage spot |
10 |
|
Tool storage motor |
Brushless |
|
Reference stops |
2 |
|
Clamps Clamp displacement Clamp closing force |
6 (8 on request) Automatic 80 kg |
|
Lubrification |
Automatic - CNC managed |
|
Humidity limit |
80% |
|
Accuracy |
0.1 mm/m |
|
Monitor |
27 inches LCD MONITOR |
|
Operating system |
Win11 |
|
Connections |
USB (1 port), LAN, Wi-Fi |
|
MODEL |
IRONSTAR 7 METERS |
|
Dimensions |
8.900 x 2.000 x 2.200 mm |
|
Dimension for transport |
L 8.900 W 1.800 H 2.200 mm |
|
Layout dimension standard |
L 9.100 W 2.600 H 2.450 mm |
|
Weight |
4.200 Kg |
|
Nominal power |
24 kW |
|
Consume power |
18 kW |
|
Required protection |
40 A differential thermal, 0.03 A, adjustable, 6.000 A magnetic |
|
Voltage |
400Volt 3-phase + Neutral + Ground ±5% |
|
Frequency |
50/60 Hz |
|
Minimum air pressure |
6.5 bar |
|
Air consume |
180 NL/M |
|
Electrospindle nominal power |
10 kW |
|
Tool holder type |
HSK F63 |
|
Spindle cooling system |
Water cooled system |
|
Tool cooling system |
Micro-drop lubrification system with pure oil |
|
Oil tank capacity |
2 Lt |
|
Number of nozzles |
2 |
|
X-axis travel Y-axis travel Z-axis travel A-axis rotation |
7.100 mm 140 ÷ 320 mm 3axis 230 mm 180° |
|
Max speed X Max speed Y Max speed Z Max speed A |
80m/min 60m/min 30m/min 3.600°/min |
|
Tool storage spot |
10 |
|
Tool storage motor |
Brushless |
|
Reference stops |
2 |
|
Clamps Clamp displacement Clamp closing force |
6 (8 on request) Automatic 80 Kg |
|
Lubrification |
Automatic – CNC managed |
|
Humidity limit |
80% |
|
Accuracy |
0.1mm/m |
|
Monitor |
27 inches LCD MONITOR |
|
Operating system |
Win11 |
|
Connections |
USB (1 port), LAN, Wi-Fi |
